MiniLoad Stacker Crane ASRS
——
Material Box Stacker Crane ASRS
MiniLoad Stacker Crane ASRS is a storage solution that uses
miniload stacker to automatically access miniloads (plastic boxes
or cartons). The miniloads can be stored in single box or stacked
mode, and the storage capacity of goods in the same area can reach
3-5 times of the traditional flat warehouse.
Mini load AS/RS can be seamlessly connected with the box conveyor
and sorting system to form an automatic logistics system with
complex functions. It is most suitable for multi variety and small
batch inbound and outbound operations such as scattered articles
and parts. It can not only realize the storage, sorting and
handling functions of logistics, but also cross plane operations,
save time and improve efficiency.
Computer controlled, automated box storage system which reduces
time spent on order preparation and eliminates errors.
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
Advantage
—
1) Applies the "product-to-person" principle 2) Automates the entry
and exit operations of products
3) Real-time inventory, which is constantly kept up-to-date 4)
Human errors eliminated 5) Maximum use of available space
6) Maximum comfort and easy access to the stored boxes
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
Miniload Light Stacker
——
| Instalations | Parameters | | Positioning accuracy | ±5mm |
| Load | Max 100KG | Noise | <75db |
| Height | Max 21m | Walking acceleration | Max 3m/S² |
| Traveling speed | 120~360m/min | Acceleration of lift and descent | Max 1m/S² |
| Litng speed | 60~90m/min | Pallet fork acceleration | LOADING 0.5m/S² |
| Pallet fork speed | LOADING 40m/min | | |
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China

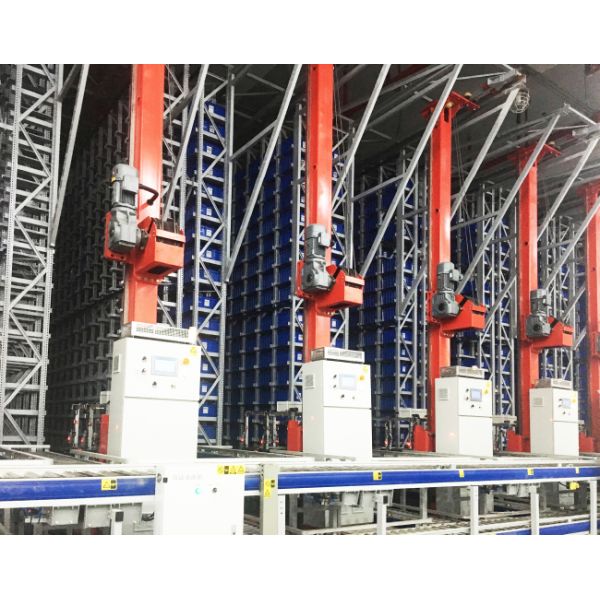

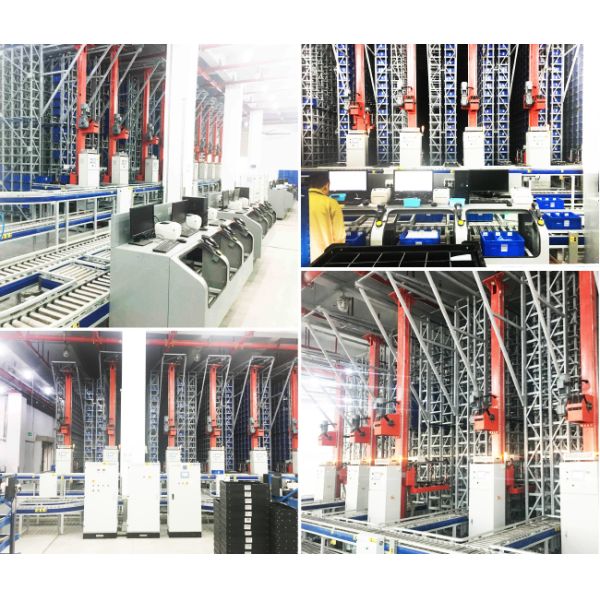

Engineering Case Ⅰ
——
1)Total 32232 tote positions;Tote outside dimension:
D400*W300*H240mm; Total 11 units miniload stacker
2) Walking speed: 160m/min; Lifting speed:40m/min; Fork speed:
40m/min;
3) In front of ASRS, sorting system is divided into input and
output two layers. Greatly improved equipment picking efficiency;
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China

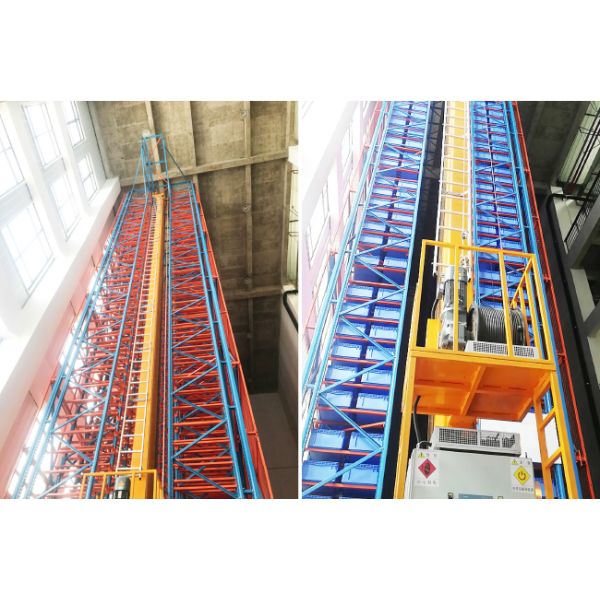

Engineering Case Ⅱ
——
ASRS height: 19.7 m, number of tote slots: 4140
Main Equipment: 1 double-deep racking stacker, 1 conveying system,
1 racking system, 1 WMS/WCS/RFS software system
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
Engineering Case Ⅲ
——
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
Optional Supporting Equipment
——
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
Warehouse Safety Barrier
—
»» More »»
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In
China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large
steel group of high quality carbon steel, durable and strong, to
ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding
joint has good cracking resistance, small welding deformation,
beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional
personnel with professional technology and cut by professional
equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal,
phosphating, powder, and then in high temperature oven baking
molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration
of vertical warehouse.
Welcome everyone visit and give guidance.
