Stacker Crane ASRS
——
Floor Supported Storage / Retrieval Machine
Automatic Storage And Retrieval System
Operating temperature: -30°C to +45°C
The automated stereoscopic warehouse system (AS/RS) is an important
part of enterprise logistics. As a logistics system, it adopts
advanced technology to improve operating efficiency, reasonably
control inventory, reduce logistics costs, and continuously improve
the management level of enterprises, thereby improving the economic
benefits of enterprises. With the rapid development of modern
warehousing and logistics industry, the automated stereoscopic
warehouse system (AS/RS) has been further developed and has become
an important link connecting production and circulation
consumption.
At present, the system adopts an integrated logistics computer
management control system (WMS), and applies advanced technologies
such as laser positioning technology, infrared communication,
fieldbus control technology, barcode scanning, RF system, etc. The
WMS system can exchange information with the ERP system, has
complete functions and reliable performance, and truly plays the
role of a bridge connecting production and consumption. The
stereoscopic warehouse system will play an increasingly important
role and will be more widely used in warehouses and distribution
centers in all walks of life.
The specially treated anti low temperature design makes this system
also suitable for cold storage projects.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
AS/RS Advantage
——
AS / RS is a revolutionary achievement of logistics technology. It
is generally composed of high-rise shelves, roadway
stacker,conveyor, control system and computer management system
(WMS).It can complete the automatic access operation of unit goods
under the control of computer system.Automated Storage and
Retrieval System are advanced storage solutions that integrate
mechanical and electronic technologies tooptimize warehouse
operations.These systems are designed to maximize space
utilization, enhance efficiency, and improve the overall management
of inventory.
• Space Efficiency: By utilizing vertical space and reducing the number of access
aisles, these systems can significantly increase the storage
capacity within the same footprint.
• Increased Productivity: The automation of storage and retrieval operations leads to faster
throughput and improved productivity.
• Reduced Labor Costs: With less reliance on manual labor for handling goods, companies
can save on labor expenses.
• Enhanced Accuracy and Traceability: Automated systems reduce the risk of errors in inventory management
and provide better
traceability of goods.
• Customization and Scalability: Automated shelving systems can be customized to fit specific
storage needs and can be scaled up
or down as business requirements change.
• Energy Efficiency: Many automated shelving systems are designed with energy-saving
features, which can lead to lower operational costs.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
AS/RS Structure
——

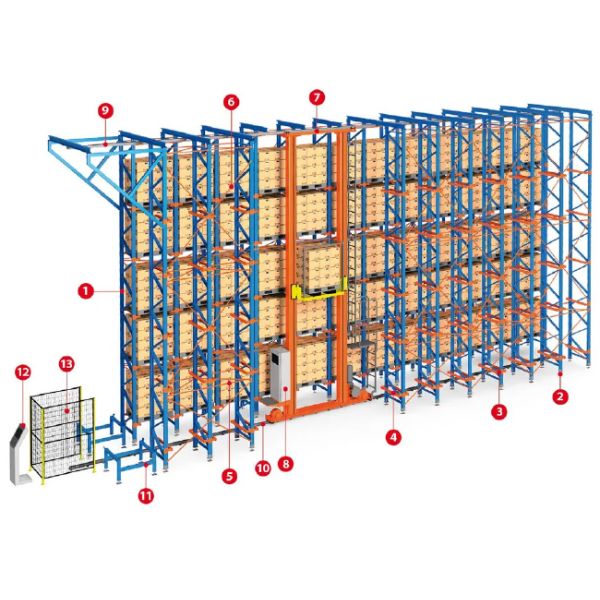

1. Upright Frame 2.Adjustable Foot Stand 3.Bracket Arm 4.Pallet
Rail 5.Lateral Braceing 6. Back Bracking
7.Stacker Crane 8. Control Panel 9. Top Rail 10. Bottom Rail 11. Input / Output Sation 12.Stacker Crane Controller 13.Safety Fence
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
AS/RS Main Components
——
»» ASRS Racking »»
ASRS racking offers compact storage in high bay warehouses where
goods need to be accessed quickly. Pallets are retrieved
efficiently for fast order fulfilment through software integration.
Orders can be consolidated for shipment, streamlining warehouse
operations.ASRS rack structures are engineered to optimise space in
high-bay warehouses. The system is manufactured with precision and
is fully bolted to thefloor slab. This offers completely straight
and robust racking catering to weight of goods, crane forces as
well as local criteria such as environmental loads, soil type sand
seismic zone requirements.We also offer full product engineering
certification and detailed trace ability, which under pins the
product's structural integrity and thesafety of any installation.
Structural feature: ASRS System are usually equipped with pallet
racking and drive-in racking, both of which are composite
structure. Steel panels and wooden panels are available for loading
with good capacity. Conveyors will do the loading and unloading job
under the instruction from the central computer. ASRS System is
mainly used in the food, tobacco, electronic,mechanical and
armament industry.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
»» Stacker Crane (SRM) »»
Stacker Crane is the storage & retrieval device in AS/RS. replacing
manual warehousing tasks.Normally has single upright and double
uprights structure. It complete the operation demand by walking,
lifting and fork driving mechanism. We adopt advanced servo control
system and absolute addressing system for full closed loop control.
By cooperating with barcode and laser rangefinder, our stacker
crane achieve running high-precisely. The maximum loading capcity
up to 8 tons. Maximum speed up to 400m/min.
The storage and retrieval machine(SRM) operate as a crane that
moves horizontally within a single aisle.Stacker cranes are
machines designed to store and retrieve pallets automatically. They
move in length, height, and depth to load and unload goods from
racking structures in a highly agile, precise manner.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
»» Conveying Systems »»
Conveying system is usually equipped in the front or back of
warehouse for conveying goods here and there,bridging the
procedures done by forklifts and stackers by using rolling conveyor
or chain conveyor and combining with lifts,rotating devices and
other equipments.
Our systems ensure efficient, continuous, and accurate movement of
goods within the AS/RS, enabling seamless operations across diverse
warehousing configurations.
Seamless Integration: Works in harmony with S/RMs and other devices
commonly used in automated systems such as stretch-wrappers, label
applicators, stackers, dispensers, staging systems, etc.
Precision Control: Provides real-time monitoring and precise
control for reliable product movement throughout the warehouse.
High Throughput: Engineered to handle large volumes, meeting the
demands of rigorous order fulfillment schedules.
Durability and Reliability: Built with robust components for
continuous operation and minimal maintenance.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
● Controlling system
Structural feature: Communicating with WMS and ECS through OPC
agreement, PROFIBUS bus network, set up by Siemens S7-300controller
can operate all conveyors offline, doing conveying of goods
automatically.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
● WMS System WMS
Hardwares of WMS System: Star network structure, network sever, RF
server, computers for management and monitor, RF base station and
RF terminal for in/out warehouse of goods |
Softwares of WMS System | Operating system: WINDOW 2000X SEVER |
Data-base: MS SQL SEVER 2000X |
Warehouse management software: WMS |
Equipment controlling software: WCS |
Bar code management software: RFS |
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
ASRS Type
——
»» Cold Storage Warehouse Pallet Stacker Crane ASRS »»
»» Double Deep Pallet Stacker Crane For ASRS »»
»» Single Deep Pallet Stacker Crane For ASRS »»
»» U-Turn Stacker Crane Curve Rail Type Pallet Stacker Crane For
ASRS »»
»» Integrated Logistics Center ASRS »»
»» MiniLoad Stacker ASRS »»
»» Radio Shuttle Racking and Stacker Crane ASRS »»
● Four-column stacker cranes ASRS
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
Intelligent Equipment
——
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
Product Packaging And Transportation
——
Floor Supported SRM ASRS · Automatic Storage And Retrieval System ·
Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large
steel group of high quality carbon steel, durable and strong, to
ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding
joint has good cracking resistance, small welding deformation,
beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional
personnel with professional technology and cut by professional
equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal,
phosphating, powder, and then in high temperature oven baking
molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration
of vertical warehouse.
Welcome everyone visit and give guidance.
