Equipment and auxiliary materials required
——
For Stu Material Box Robot
Power Supply And Walking
—
Equipment and auxiliary materials required
Sliding contact line
1) Finger anti misoperation design 2) Installation on the lower
track 3) 48V DC
Walking positioning code
1) Each continuous shelf has 1 strip on top and 1 strip on the
bottom
2) Cannot be truncated for multiple shelves
Walking track
1) 1 track each for the upper and lower tracks
2) Maintenance area shelves also need to be configured
Electrical Cabinet
1) 1 roadway ≥ 1 unit
2) Select 4KW and 8KW based on the number of STUs in the tunnel
3) Maintenance area shelves also need to be configured

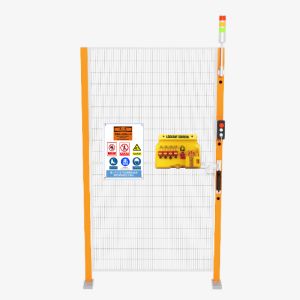

Safety Door
1) Configuration at both ends of the tunnel 2) Controller
integrated into electrical cabinet
3) Electric door lock: 1. Warning sign 2, padlock 1, etc
Workbin Robot · AMR Autonomous Mobile · Made In China

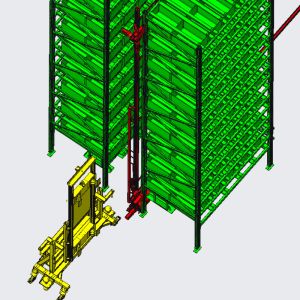

Repair Car
—
Equipment and auxiliary materials required
Complete Machine Repair Car Quick Exchange And Transfer:Quickly
replace spare vehicles within 30 minutes
Cooperate with tooling operation for 20 minutes to quickly replace
components
Auxiliary support > Remove screws > Plug and unplug wiring
harness
Quickly replace the driver within 10 minutes
Remove screws > plug and unplug wiring harness
It is recommended to equip 2 work trucks for each project, with a
minimum of 1
● A car is equipped with one backup STU machine ● B car is empty
When using
● B car quickly replaced the abnormal car ● A car quickly put the spare car on the shelves
Workbin Robot · AMR Autonomous Mobile · Made In China
Robot equipment
—
Equipment and auxiliary materials required
Number | Name | Technical
Specifications | Quantity | Remarks and Notes | Unit |
1 | Busbar | | On Demand | 1.Sliding contact line length=(length of each tunnel+1m) * number
of tunnels 2.If there is a maintenance area, maintenance area shelves, and
sliding contact lines in the design, they need to be selected, and
the length=the length of the maintenance area shelves; | Meter |
2 |
STU walking track | |
On Demand | 1.The length of the track within a height of 8m=(length of the rack
with STU installed+3m) * 2; 2.Evaluate separately for heights exceeding 8m 3.The tracks of the maintenance area shelves need to be selected
synchronously: length=shelf length * 2 * shelf quantity |
Meter |
3 |
STU Power Supply &Lane Door Control Cabinet |
4KW/STU 220V AC/ |
On Demand | 1.At least one unit shall be installed on the side of the shelf in
each aisle, and one vehicle shall be used in each aisle; 2.The power supply cabinets for the newly added maintenance area
shelves need to be selected synchronously, with one shelf and one
vehicle selected, and no less than one shelf (the selection of
power cabinets for the maintenance area shelves should be based on needs) |
Piece |
4 |
STU power supply &lane door control cabinet (1 electrical cabinet for
2-3 cars+1 l ane door control) |
8KW/STU 220V AC |
On Demand | 1.At least one unit shall be installed on the side of the shelf in
each aisle, and 2-3 vehicles shall be used in each aisle; If there
are more than 3 vehicles in one roadway, 2 vehicles need to be
selected. 2.The current project aims to control the number of vehicles in a
tunnel below 6. If the number exceeds 6, please confirm and contact
the product 3.The power supply cabinets for the newly added maintenance area
shelves need to be selected simultaneously, with 2-3 vehicles
selected for each shelf and no less than one for each shelf (the
selection of power cabinets for the maintenance area shelves should
be based on needs) |
Piece |
5 |
STU maintenance work- ers load vehicles | |
2 | 1.Quickly replace the STU matching truck when STU is abnormal; 2.Quantity is 2, one empty vehicle (used for dismantling damaged
STU, and one full vehi- cle (equipped with spare machine for direct
replacement); 3.The specific quantity will be determined according to the plan,
with a minimum quantity of 1 |
Set |
Workbin Robot · AMR Autonomous Mobile · Made In China
Outsourced Equipment
—
Equipment and auxiliary materials required
Number | Name | Technical Specifications | Quantity | Remarks and Notes | Unit |
1 | Aerial work platform | | 1 | Optional, provided according to customer needs; Some customers rent
on-site, while others purchase | Set |
2 | Tunnel safety components | Aerial work platform tunnel safety components | On demand | Lane safety: Each lane is equipped with one set, includ- ing one
electronic door lock, two warning signs, one padlock, etc | Set |
Workbin Robot · AMR Autonomous Mobile · Made In China
Implement Supporting Facilities
—
Equipment and auxiliary materials required
Number | Name | Technical Specifications | Quantity | Remarks and Notes | Unit |
1 | Position code | 40 * 40 QR code | On Demand | Statistics by warehouse number | Piece |
2 | Stu walking code | 60m/40m/20m, T-STU
shelf code | On Demand | 1.There are a total of 2 items on each consecutive shelf, and they
cannot be cut off for use on multiple shelves. Each item is used
once; 2.Considering that there may be errors or damages in the
implementation of code pasting, it is recommended to have a
required quantity of 1.1 for material preparation, rounded up-
wards | Piece |
3 | Imple- mentation toolkit | Various implementation tools | On Demand | | Set |
Workbin Robot · AMR Autonomous Mobile · Made In China
Workbin Robot · AMR Autonomous Mobile · Made In China
