Polymer Ground Safety Barrier
Warehouse flexible anti-collision system
Polymer crash bar is a new type of protection system. Applicable to
columns, corners, walls and shelves end protection, and at the same
time can be used in combination with pedestrian guardrail to
strengthen the protective effect, the maximum weight to withstand 5
tons of forklift trucks with a speed of 7km / h impact.
Safety Barrier · Warehouse Storage Rack · Made In China
Product Advantage
● The eye-catching yellow color has a good warning effect.
● Customized lengths and corners are available upon request
● Durable and maintenance free
Safety Barrier · Warehouse Storage Rack · Made In China

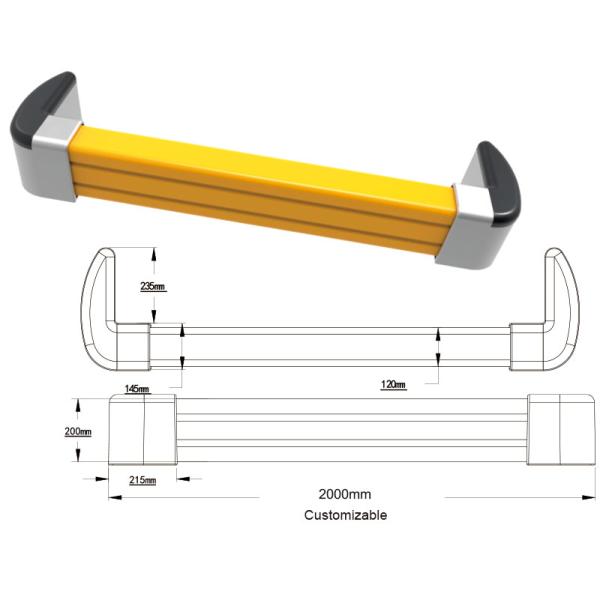

Technical Specifications
| Overall Length (Customizable) | 2000mm |
| High | 200mm | Width | 120mm |
Extendable:meet the needs of different sizes.
360 degree splicing: To give the equipment a full protection.
Multi-protection:Can be combined with pedestrian barriers.
Safety Barrier · Warehouse Storage Rack · Made In China
Absorbable impact energy
—
90 degrees between forklift and guardrail, impact of forklift tail
on the middle of 1.5m beam.
● 2064kg vehicle at 7.5km/h ● 4252 Joules
Safety Barrier · Warehouse Storage Rack · Made In China
Built-In
—
Safety Barrier · Warehouse Storage Rack · Made In China

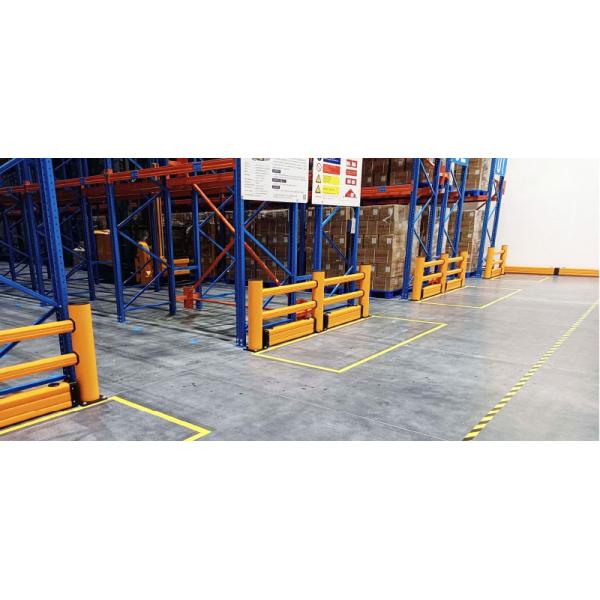

Corner guardrail
—
Safety Barrier · Warehouse Storage Rack · Made In China
End mounted
—
Model:HYD-LGR-2
Safety Barrier · Warehouse Storage Rack · Made In China

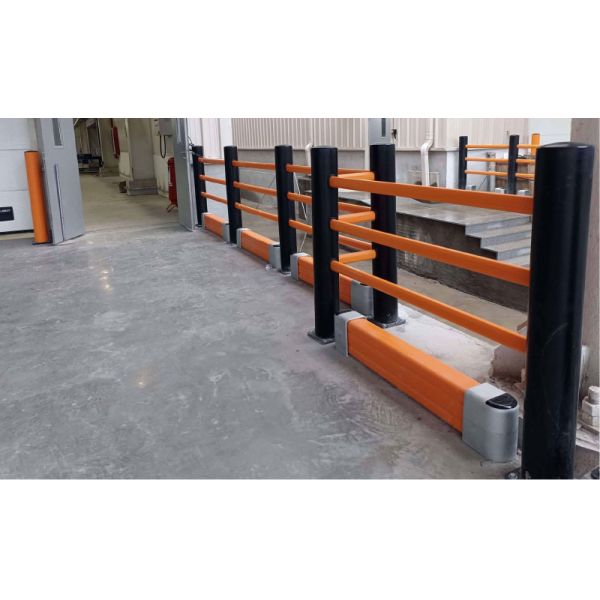

Combination Fence
—
The combination of crash bar and pedestrian guardrail creates
multiple protection to better protect corporate property and
personnel safety.
Safety Barrier · Warehouse Storage Rack · Made In China

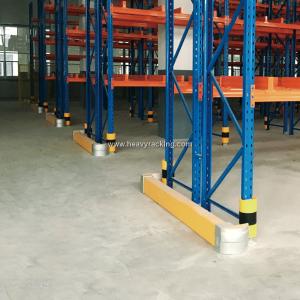

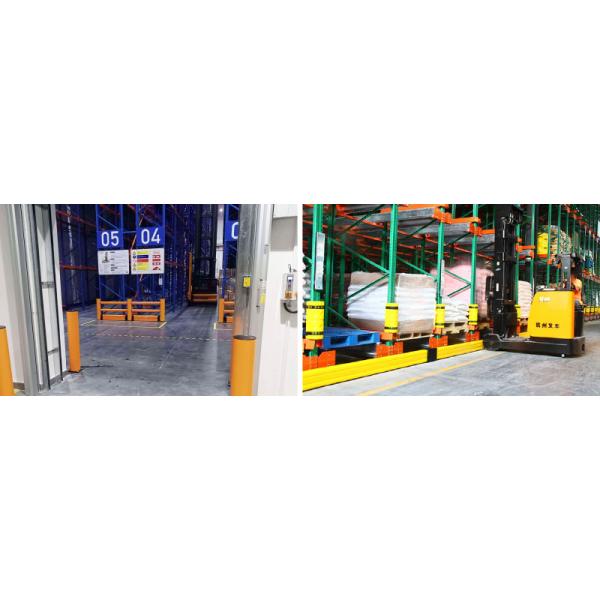

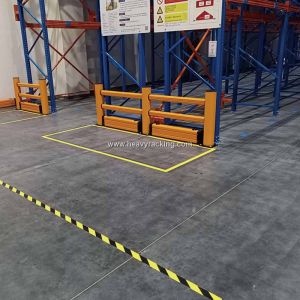

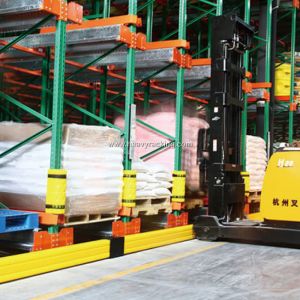

CASE
—
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Packaging Details
Safety Barrier · Warehouse Storage Rack · Made In China
Anhui Huayide Intelligent Storage Equipment Co., Ltd. is a
manufacturer in China specializing in the research, development and
production of flexible anti-collision facilities. The company has
its own material research and development center, testing
laboratory, injection molding, blow molding, extrusion,
thermo-synthesis production line, and has been supplying high
quality products to a number of the world's top 500 companies
continuously. Our products are in line with MUTCD, ASTM, CE, GB and
other related standards, and we have a number of existing invention
patents.
Our flexible anti-collision products have passed the TUV test and
certification. This series of products include high-impact and
high-energy-absorption crash barriers and guardrails, which have
been widely used in airports, production areas, logistics
warehouses and other fields. Flexible anti-collision series
products can effectively protect operators and equipment assets,
and at the same time reduce maintenance costs.
Huayide Intelligent has always been to innovate to achieve the
product, to create a reputation for quality, for the user's safety
escort. We look forward to working together with our partners.
Our mission: to make work safer
In our work, a variety of safety accidents often occur. We are
adhering to the staff can let all the staff can be more assured,
safe work of the original intention, and constantly according to a
variety of work scenarios to develop and continue to improve a
variety of safety protection products.
